Water Quality Analyzer
Features
POINT
POINT 01
FDO Measurement Device
Anti-fouling FDO measurement device with adjustable water level
Improvement in FDO measurement device pollution
Automatic water level adjustment

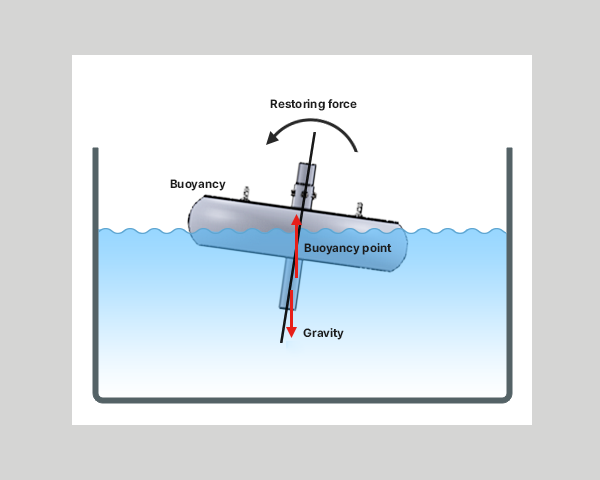

POINT 02
FDO Measurement Device
Device resistant to water flow inside the aeration tank
Development of a flotation device that can handle turbulence
Optimal weight and size determined to prevent flipping in tank waves
Specifications
SPEC| Product | Category | Performance |
|---|---|---|
|
Weight | 14kg |
| Vertical movement range | 4.5m | |
| Dimensions (height, width, depth) | 552mm, 60m, 1,010mm | |
|
Outer dimensions (diameter, height) | 450mm, 223.65mm |
| Material (upper, lower) | SUS, polyurea | |
| Max lateral roll recovery angle | 15° | |
| Static recovery force (max) | 5.295kgG | |
| Buoyancy (max) | 137.2kgG |
*Water Quality Analyzer inquire : 010-9700-6209 Kang Byung-Woo (Team Manager)*

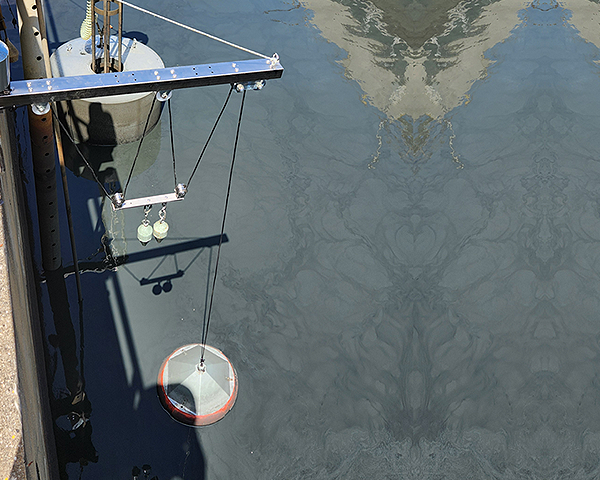

Water Quality Analyzer Installation Case
We collaborate with numerous government offices, public enterprises, and business sites.
Using the floating-type Water Quality meters
Next-generation Energy-saving Technology
ES-SWM , ES-SWQM
