IoTmix
Leader in Installations for 6 Consecutive Years
IoTmix
IoT device + Gateway = IoTmix
Facility Management Device
Features
POINT

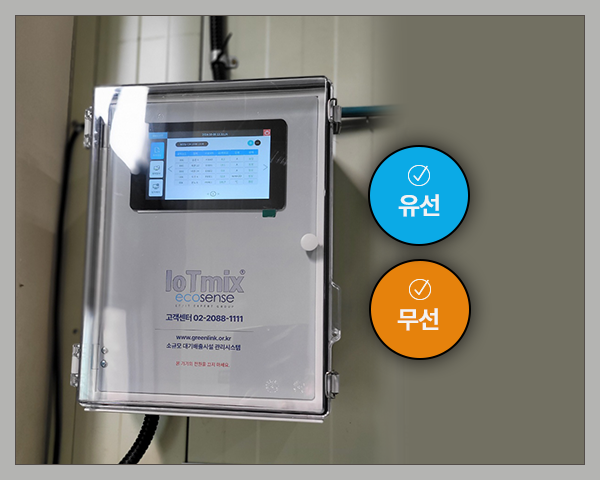

Hybrid Wired and Wireless
Can switch between wired or wireless
No need to replace equipment even if changes are made later
Free communication fee for wired connections

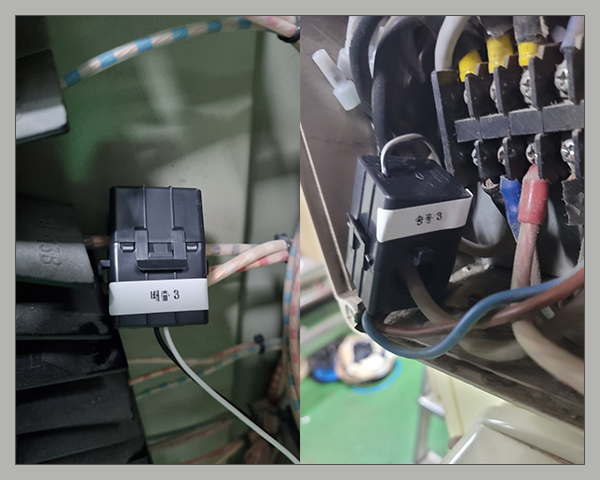

Current Sensor (CT) Reception
Receives up to 40 current sensors (CT), expandable to 60
Economic installation possible
Compliance
Participated in the development of standards for first and second phase IoT pilot projects and installations
Conforms to governmental installation standards
Specifications
SPEC| Category | Ecosense IoTmix |
|---|---|
| External Dimensions | 2 channels:300*400*180, 4 channels:350*450*200 |
| Input | temperature(4 channels), differential pressure(4 channels), pH(4 channels), Current sensor(40 channels(expandable to 60 channels)) |
| Display | 7inch LCD |
| CPU | Quad Core 1.8GHz |
| RAM | 2GB |
| Memory | Built-in 16GB |
| OS | Debian 9.9 |
| Communication | LTE(VPN) |
| Rated Voltage(V) | 220 |
| Maximum Power Consumption(W) | 20 |
| Operating Temperature(℃) | -20 ~ 60 |
| Weight(kg) | 7 |
*IoTmix inquire : 010-8794-4111 Lim Rae-Sung(Managing Director)*
Performance
PERFORMANCE
Ecosense IoTmix is the
No.1 company in the prevention facility IoT market.
(Ranked No.1 for six consecutive years from 2019 to 2025)
- As of January 2025, over 8,000 units installed (largest in Korea)
- In 2024, ranked No.1 in supplying ultra-low temperature fully automated
water spraying systems for wet crushing and aggregate plants integrated with IoT equipment
- In 2019, participated in the prevention facility pilot project utilizing IoT technology (Ministry of Environment)
- In 2018, participated in the environmental prevention facility IoT measuring device pilot project (Korea Environment Corporation)
- In 2005, recognized as the first environmental consulting company in South Korea (Han River Basin Environmental Office)

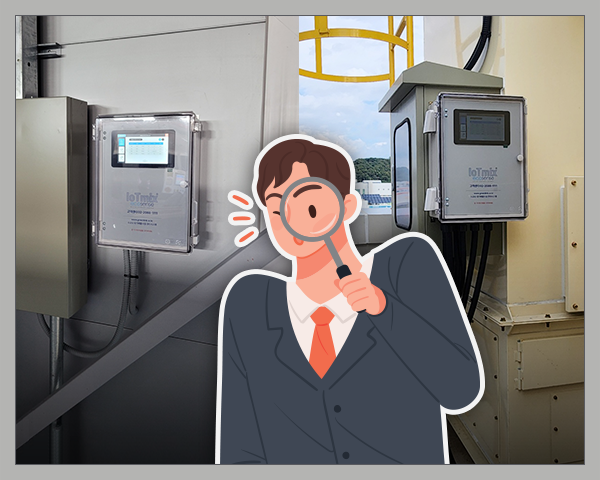

Installation Cases
We collaborate with numerous government offices, public enterprises, and business sites.
IoTmix display
IoTmix Sensor
Ranked No.1 in installation market share for six consecutive years.
Over 8,000 units installed to date.
