Water Spray System
No. 1 performance of spray system supply
Fixed Water Sprayer
Perfect response to the improvement of wet crushing and grinding facilities
Exempt from self-measurement as a Prevention Facility
Features
POINT
「Response to the improvement plan for wet crushing and grinding facilities」

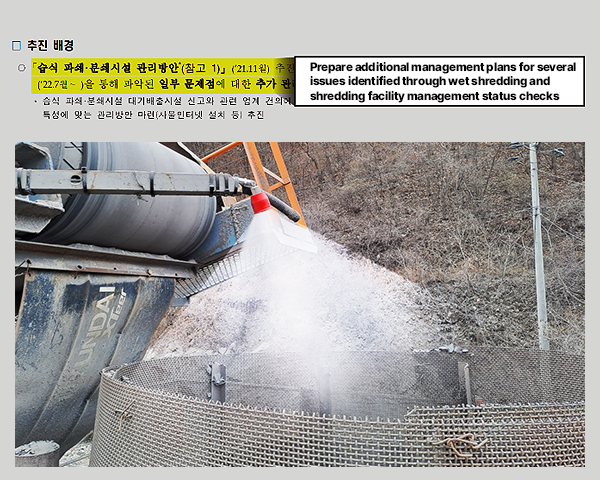

Mist form to complete Water Spray, full coverage
Fine mist spray under high pressure
Minimized water droplet size to below 50 microns

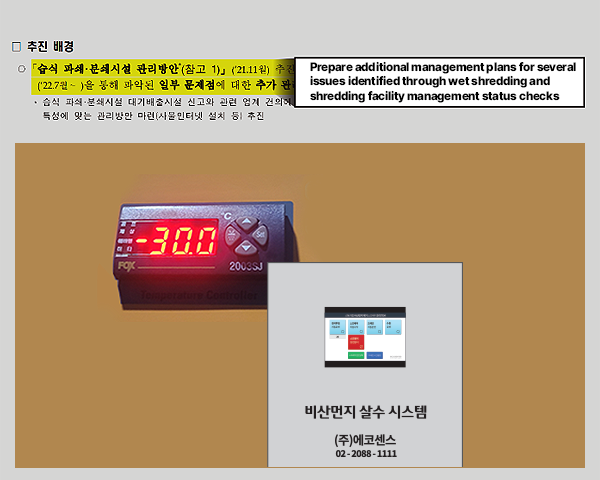

「Addressing freezing and other preventive measures」
Implementation of preventive measures such as freezing
Operation down to -30°C in the Water Spray System
Solves the risk of fire caused by heating wires

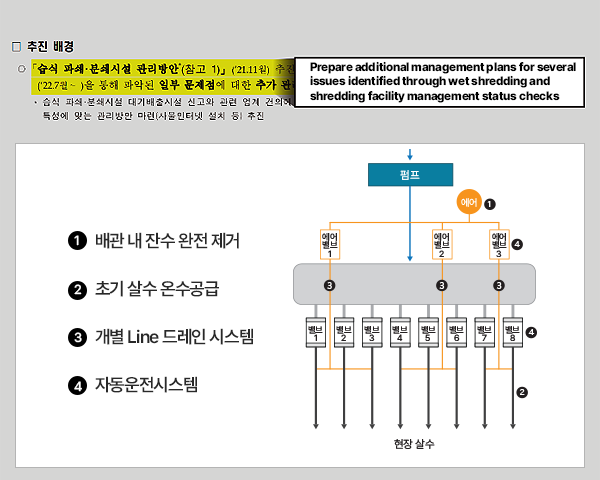

「Automation of the Water Spray System and monitoring」
Implementation of Automatic Spray System and Monitoring of Spray
Automatic measurement of Water Spray status for each emission facility
Water Spray ON / OFF control automated with a PLC
Specifications
SPEC| Category | Existing water spray devices | Ecosense Fixed Water Sprayr |
|---|---|---|
| Configuration | Direct spray from water storage tank | Water storage tank + compressed air mixing |
| Nozzle Type | Standard nozzle (sprinkler) | Ultra-fine water spray nozzle |
| Nozzle Diameter | 0.8 ~ 3.6 mm (based on 1/4″ connector) | 1 ~ 2 .4 mm (based on 1/4″ connector) |
| Pressure | 1~2 ㎏/㎠ | 6 ~12 ㎏/㎠ |
| Water Spray Radius | About 0.5m | About 8m |
| Water Usage | - | 10 L/min (per nozzle) |
| Dust Collection Rate | 10 ~ 20 % | 70 ~ 90 % |
| Operating Temperature | above zero | below zero -20℃ (heater installed) |
| Monitoring | Monitoring per facility not possible | Monitoring per facility with an advanced transmission valve attached |
*Water Spray System inquire : 010-5500-0296 Cho Seoung-Ho(General Manager)*
Performance
PERFORMANCE
- As of January 2024, more than 160 units of the Water Spray System installed
- Supply record of the ultra-low temperature automatic Water Spray System in collaboration with IoT devices at aggregate processing sites for wet crushing and grinding, business site 2024 (first instance)
- Participated in a pilot project using IoT technology for Prevention Facilities in 2019 (Ministry of the Environment)
- Participated in a pilot project for the IoT measuring device for Environment Prevention Facilities in 2018 (Environment Management Corporation)
- First Environmental Consulting company in South Korea, 2005 (Han River Basin Environmental Office)
Water Spray System Installation Cases
We work together with many government agencies, public corporations, and business sites.
IoT equipment integrated wet crushing and grinding aggregate business site
Supply record of the ultra-low temperature automatic Water Spray System, first instance
