SunRobot

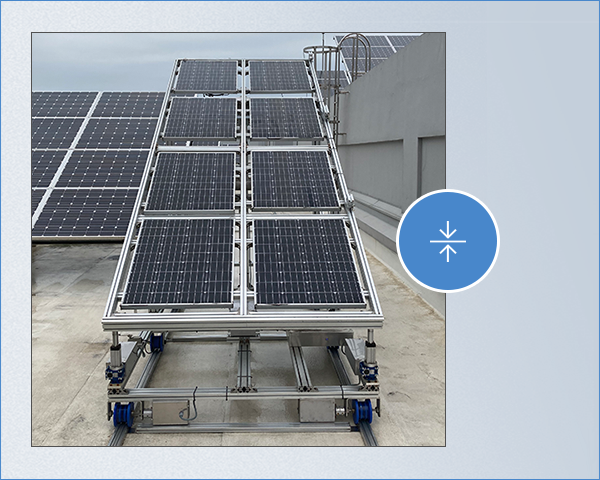

Removable Docking Station
Potential for performance improvement relative to investment
Ideal for small-scale power stations with short lengths
Features
POINT
Mobility
Moves along a dedicated rail
Enhanced mobility safety by using a four-wheel motor
Position recognition via mechanical sensors
Array alignment by limit switches

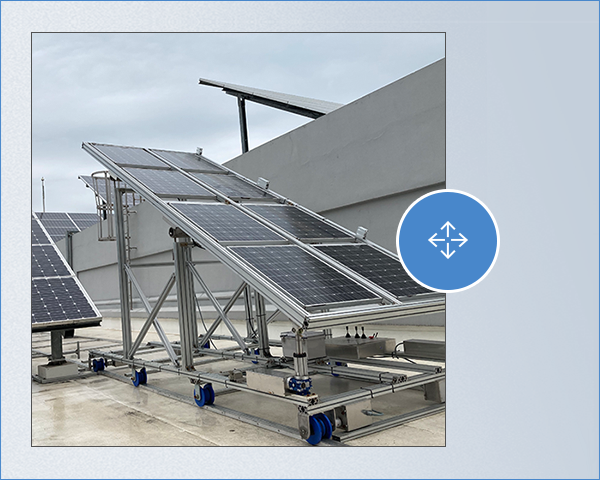

Angle Adjustment
Adjusts the height of the station
Possible to adjust both the top and bottom of the moving device simultaneously
Specifications
SPEC| Category | ES-SRS |
|---|---|
| Product Name | Removable Docking Station |
| Model | ES-MRS-L4 |
| Power Consumption | 200W |
| Rated Voltage | 24V |
| Main Travel Speed(*) | 10m/min |
| Time Required for Angle Adjustment | 1min 30sec |
| Operating Temperature | -20 ~ 70℃ |
| Battery Type | Lithium Iron Phosphate |
| Battery Charging Time | 2h 30min |
| Continuous Operation Time | 5hr |
| Cleaning Mode | Automatic / Manual |
| Weight | 370kg |
| Dimensions | W1650 X L3600 X H3000 (mm) |
*SunRobot inquire : 010-5500-0296 Cho Seoung-Ho(General Manager)*
Performance
PERFORMANCE
Ecosense Sunbot
strives for efficient management and
maintenance of solar power plants.
- 2021 Horizontal and vertical moving cleaning Robot
- 2020 Mobile docking station [ES-MRS]
- 2019 Vertical autonomous moving solar panel cleaning Robot [ES-VSM]
- 2018 Scanning Type solar panel cleaning Robot [ES-SRS]
- 2015 Autonomous moving cleaning Robot
SunRobot Installation Cases
We work together with many government agencies, public corporations, and business sites.
KOREA EAST-WEST POWER
KCL
Hanwha Qcells
KBS KOREA
KOREA EAST-WEST POWER
